DALI® Interface · DIN Rail

DIN-DLI

A DALI-2 certified bridge to a full DALI loop.

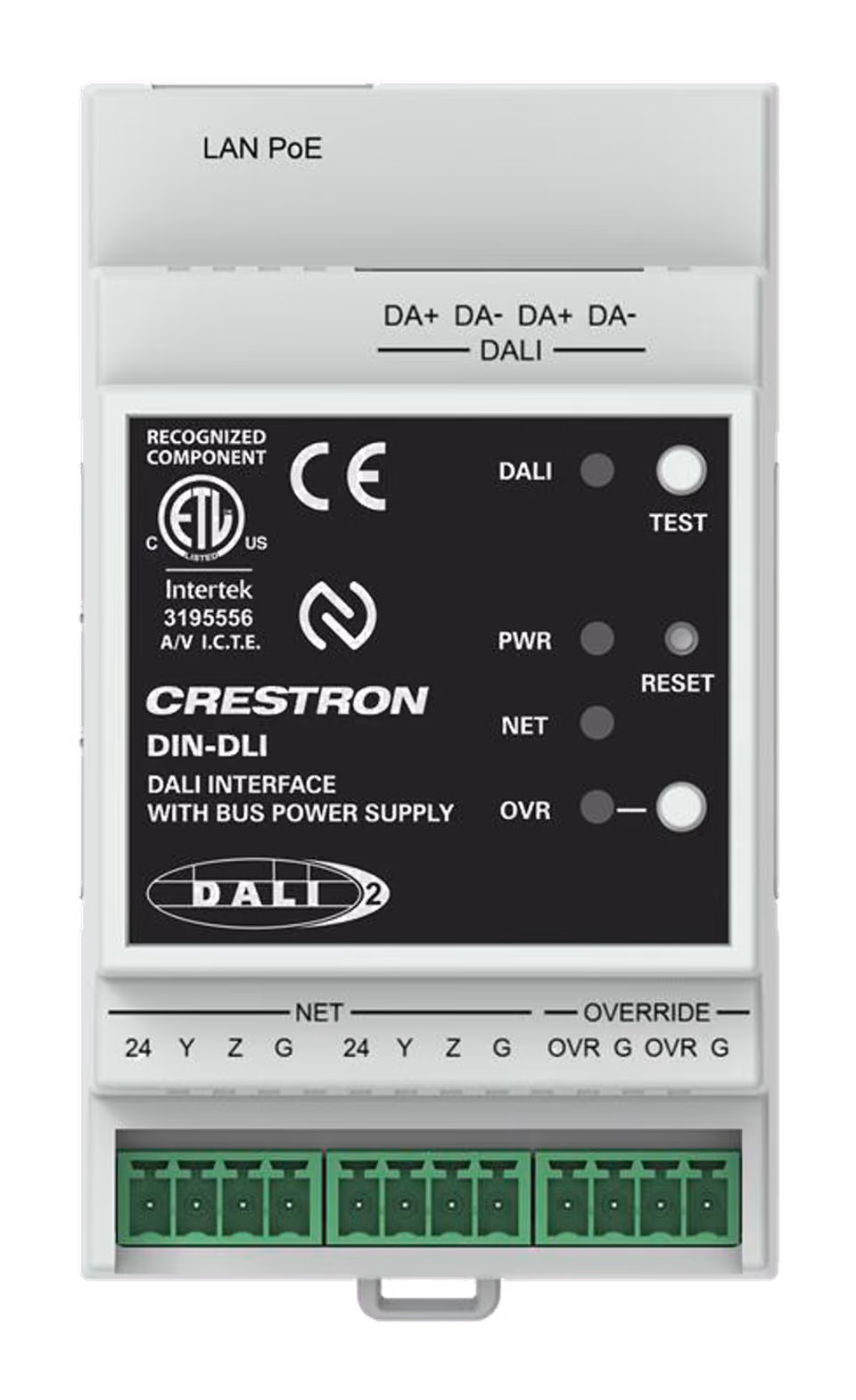

Crestron DIN-DLI in Light Gray, DALI® Interface, DIN Rail
Begin a project

Send the quantity you need for the DIN-DLI and the reply comes back with a quotation.

Message Leading IT on WhatsAppSend an enquiry

Or write to services@leadingit.me

Overview

The DIN-DLI is how a Crestron system talks to a DALI lighting loop — one loop, up to 64 addressable fittings, with DALI-2 certification behind it. It occupies 3 modules of DIN rail and connects back over Cresnet or Ethernet with PoE. Commissioning is done in a browser rather than with a separate tool.

Finishes

Choose your finish

Crestron DIN-DLI in Light Gray, DALI® Interface, DIN Rail
Specifications

Specifications

DALI®
Loops
1 · up to 64 devices
Certification
DALI-2™ certified
Device types
DT0–DT8 Tc
Connectivity
Control
Cresnet® or Ethernet PoE
Commissioning
Web user interface
PoE
802.3af Class 2
Mounting
DIN rail
3-module enclosure
Temperature
0–50 °C
Weight
113 g
