8-Channel High-Voltage Switch · DIN Rail

DIN-8SW8-I

Eight switched channels with isolated inputs.

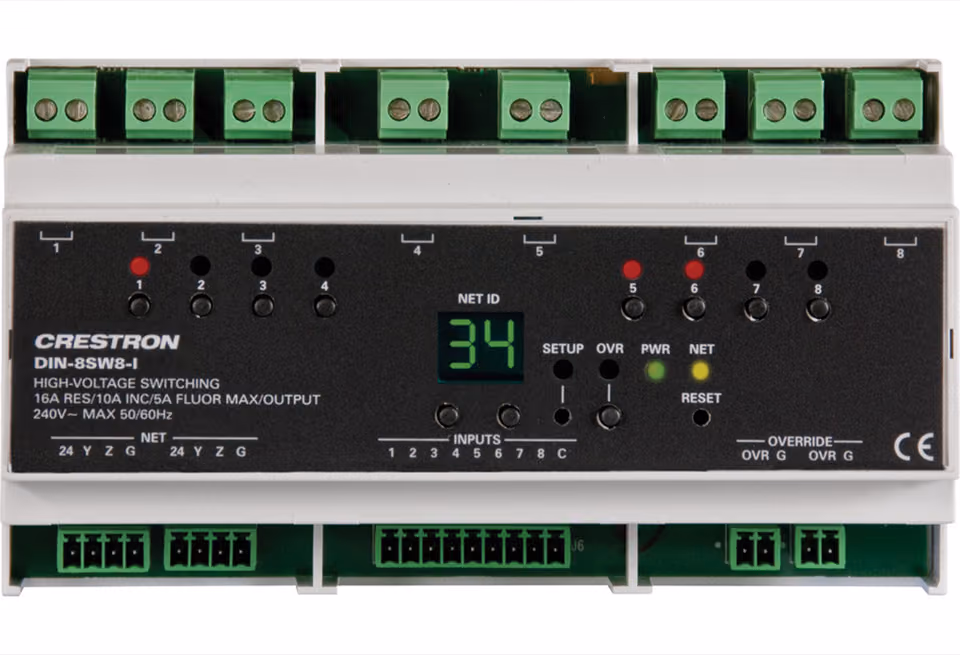

Crestron DIN-8SW8-I in Light Gray, 8-Channel High-Voltage Switch, DIN Rail
Begin a project

Send the quantity you need for the DIN-8SW8-I and the reply comes back with a quotation.

Message Leading IT on WhatsAppSend an enquiry

Or write to services@leadingit.me

Overview

Eight switched channels for lighting circuits that do not dim, and for fans. Alongside the Cresnet connection there are eight isolated local inputs, so ordinary momentary wall switches can trigger circuits directly — useful where a room needs to keep working if the control system is offline. One part number covers 120 V and 220–240 V, at up to 10 A incandescent, 5 A fluorescent or 1/2 HP motor per channel.

Finishes

Choose your finish

Crestron DIN-8SW8-I in Light Gray, 8-Channel High-Voltage Switch, DIN Rail
Specifications

Specifications

Switching
Channels
8
Per channel
10 A incandescent · 5 A fluorescent
Motor
0.5 HP @ 120–240 VAC
Inputs
Digital inputs
8 isolated
Trigger
Momentary switches, with or without processor
Comms
Cresnet® secondary mode
Mounting
DIN rail
9 modules (162 mm)
Power
5.4 W Cresnet®
Temperature
0–40 °C
In Use

In residence

Brushed-brass Crestron Horizon keypad with scene buttons, beside a softly lit bedroom at dusk.
Black glass Crestron Horizon keypad on a mosaic-tiled wall in a bright kitchen, with lighting, climate and shade buttons.
White Crestron Horizon keypad on a plaster wall, its scene and volume buttons backlit in magenta.
