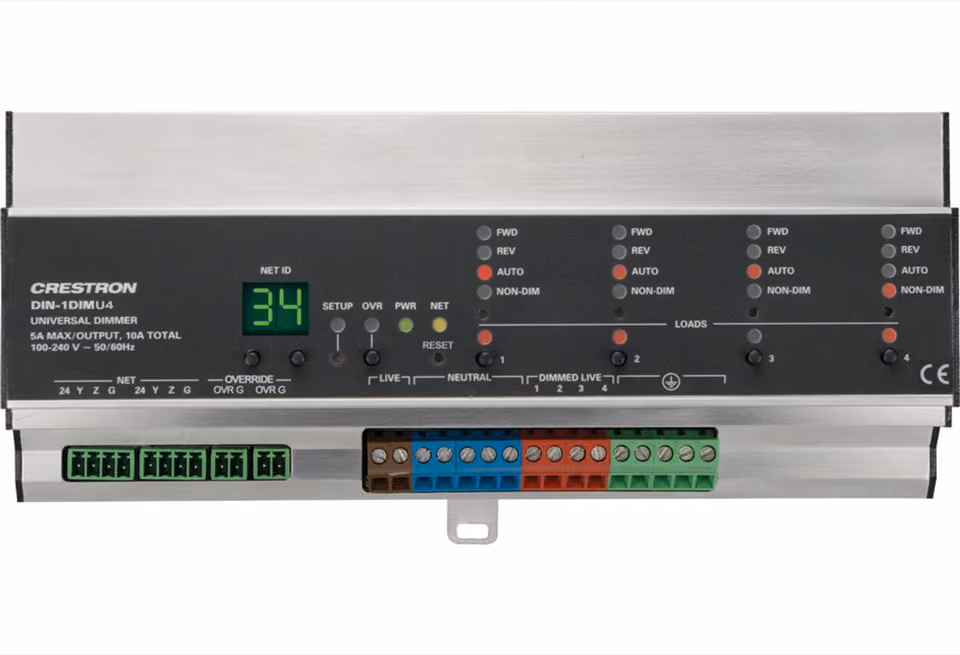

4-Channel Universal Dimmer · DIN Rail
DIN-1DIMU4
Forward and reverse phase, all in one module.
Begin a project
Send the quantity you need for the DIN-1DIMU4 and the reply comes back with a quotation.
Or write to services@leadingit.me
Overview
The DIN-1DIMU4 handles forward-phase and reverse-phase loads on the same four-channel module, so a mixed retrofit does not need two different dimmer types. Each channel detects the load type connected to it and picks its own operating mode. Ratings are 5 A per channel and 10 A total, at either 120 V or 220–240 V.
Finishes
Choose your finish
Specifications
Specifications
Dimming
- Channels
- 4 universal · 1 feed
- Phase
- Forward & reverse
- Per channel
- 5 A (600 W @ 120 V)
Load Types
- Supported
- ELV, MLV, incandescent, fluorescent, non-dim
- Line power
- 120–240 VAC, 50/60 Hz
- Module total
- 10 A
Mounting
- DIN rail
- 12 modules (216 mm)
- Comms
- Cresnet® secondary mode
- Weight
- 2.23 lb
