4-Channel Dimmer · DIN Rail

DIN-1DIM4

Four channels of dimming from a single feed.

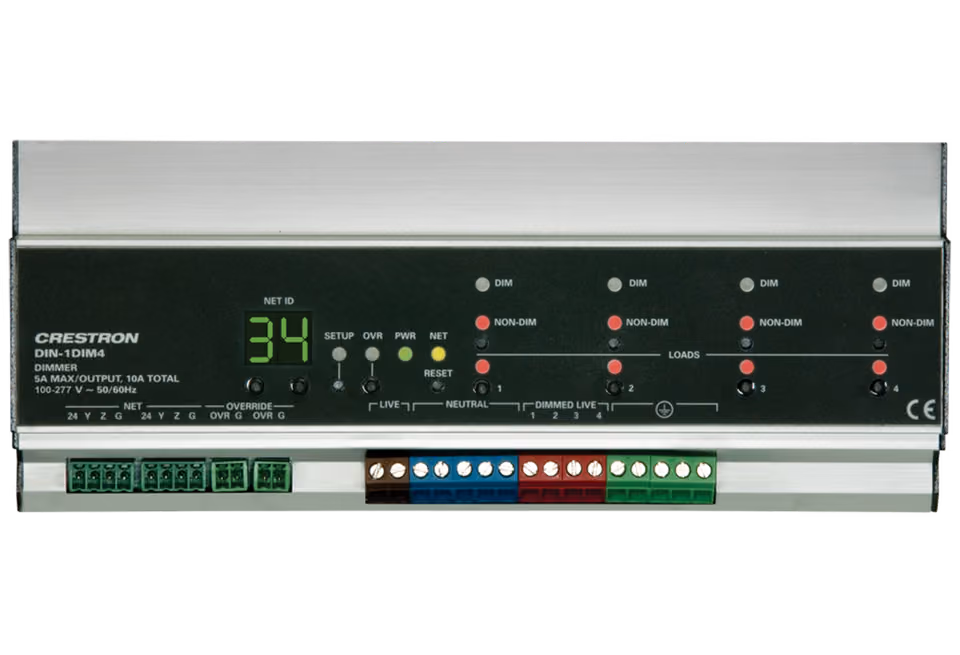

Crestron DIN-1DIM4 in Aluminum, 4-Channel Dimmer, DIN Rail
Begin a project

Send the quantity you need for the DIN-1DIM4 and the reply comes back with a quotation.

Message Leading IT on WhatsAppSend an enquiry

Or write to services@leadingit.me

Overview

Four dimming channels off a single supply feed, in a module that clips onto the DIN rail. One part number covers both 120 V and 220–277 V installations. Each channel carries up to 5 A, 10 A across the module, across electronic and magnetic low-voltage, incandescent, neon and cold-cathode, two-wire dimmable fluorescent and non-dimmable loads.

Finishes

Choose your finish

Crestron DIN-1DIM4 in Aluminum, 4-Channel Dimmer, DIN Rail
Specifications

Specifications

Dimming
Channels
4 · 1 feed
Per channel
5 A (600 W @ 120 V)
Module total
10 A
Load Types
Supported
ELV, MLV, incandescent, 2-wire fluorescent
Line power
120–277 VAC, 50/60 Hz
Control
Cresnet® + override input
Mounting
DIN rail
12 modules (35 mm EN 60715)
Setup
Front-panel controls
Weight
2.43 lb
In Use

In residence

Brushed-brass Crestron Horizon keypad with scene buttons, beside a softly lit bedroom at dusk.
Black glass Crestron Horizon keypad on a mosaic-tiled wall in a bright kitchen, with lighting, climate and shade buttons.
White Crestron Horizon keypad on a plaster wall, its scene and volume buttons backlit in magenta.
