Leading IT
2-Channel Motor Control · DIN Rail

DIN-2MC2

Drapes, shades and screens under precise command.

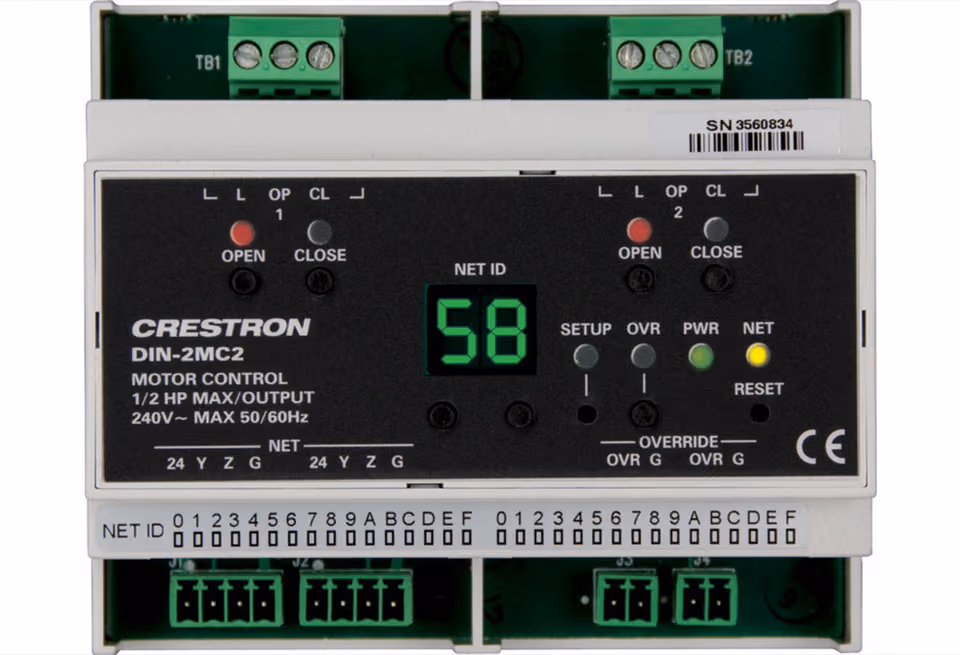

Crestron DIN-2MC2 in Light Gray, 2-Channel Motor Control, DIN Rail
Begin a project

Send the quantity you need for the DIN-2MC2 and the reply comes back with a quotation.

Message Leading IT on WhatsAppSend an enquiry

Or write to services@leadingit.me

Overview

Two motor channels for the things in a house that move: curtain tracks, blinds, a projection screen, a TV lift, a rooflight, a gate. Each channel drives one conventional three-wire bidirectional motor up to 1/2 HP at up to 240 V, in either direction. Timing and interlock logic is built in, so the module will not energise both directions at once.

Finishes

Choose your finish

Crestron DIN-2MC2 in Light Gray, 2-Channel Motor Control, DIN Rail
Specifications

Specifications

Motor Control
Channels
2 bidirectional
Per channel
0.5 HP @ 240 VAC
Loads
Drapes, shades, screens, gates
Connections
Motor
3-wire, 12 AWG max
Cresnet®
2× 4-pin terminal blocks
Override
2× 2-pin inputs
Mounting
DIN rail
6 modules (108 mm)
Power
3 W Cresnet® (24 VDC)
Weight
210 g
In Use

In residence

Brushed-brass Crestron Horizon keypad with scene buttons, beside a softly lit bedroom at dusk.

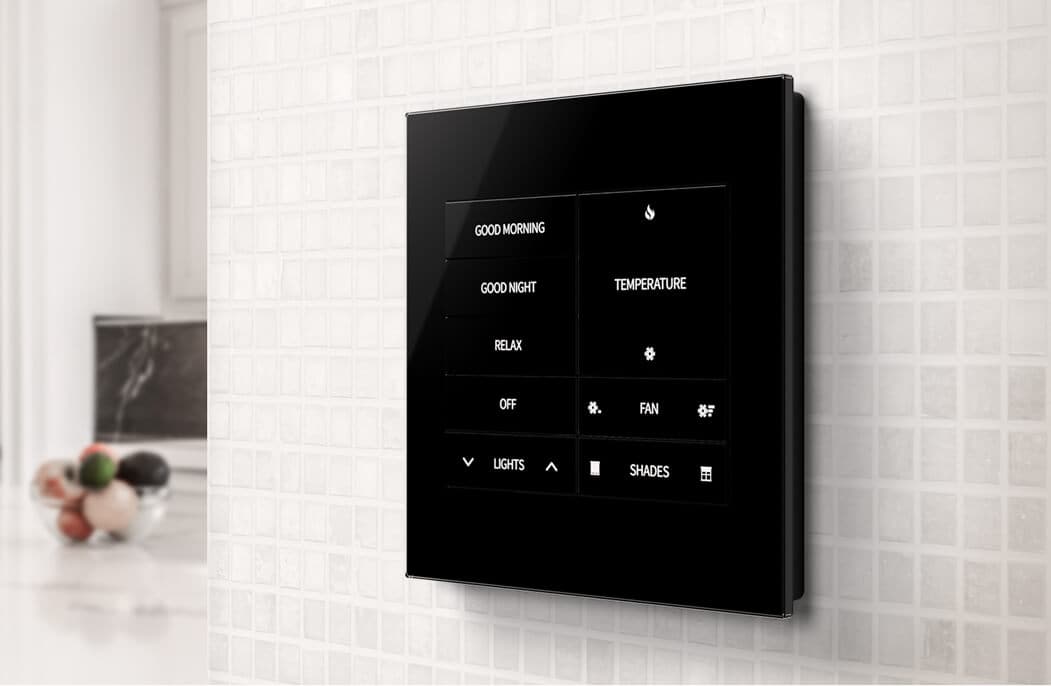

Black glass Crestron Horizon keypad on a mosaic-tiled wall in a bright kitchen, with lighting, climate and shade buttons.

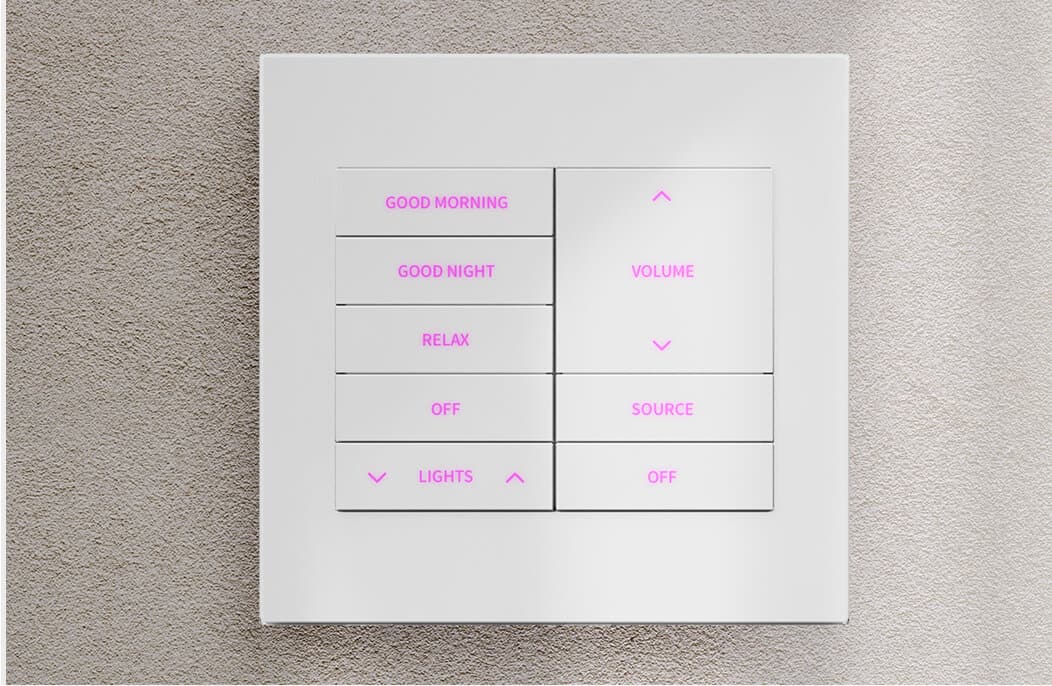

White Crestron Horizon keypad on a plaster wall, its scene and volume buttons backlit in magenta.
Begin a project

Specifying the DIN-2MC2 into a project? Describe the room and an engineer will answer.
