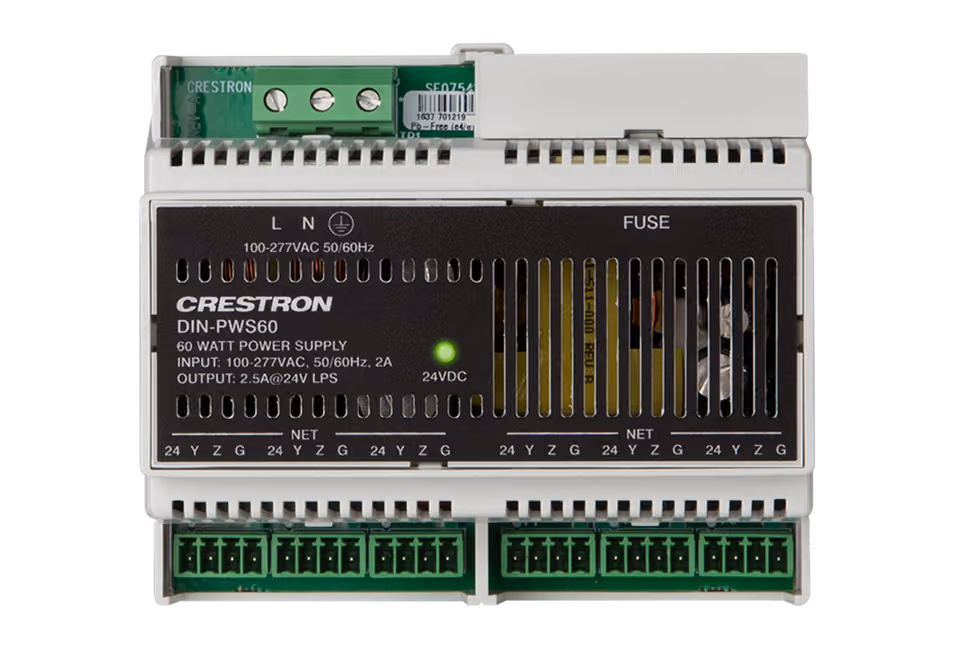

60 W Cresnet® Power Supply · DIN Rail
DIN-PWS60
Clean, front-wired power for the Cresnet bus.
Begin a project
Send the quantity you need for the DIN-PWS60 and the reply comes back with a quotation.
Or write to services@leadingit.me
Overview
Sixty watts of Cresnet power in a DIN-rail module, for feeding processors, keypads and sensors on the bus. Six Cresnet ports fan the supply out, and the unit feeds power onto the Cresnet run without sitting in the data path. Every terminal is a screw terminal reachable from the front of the board, so an electrician can wire and service it without pulling the module.
Finishes
Choose your finish
Specifications
Specifications
Output
- Power
- 60 W (2.5 A @ 24 VDC)
- Ports
- 6 Cresnet® NET ports
- Efficiency
- 85%
Input
- Line power
- 100–277 VAC, 50/60 Hz
- Consumption
- 70 W at full output
- Ripple / noise
- < 1%
Mounting
- DIN rail
- 6 modules (35 mm EN 60715)
- Wiring
- Front-accessible screw terminals
- Weight
- 170 g
