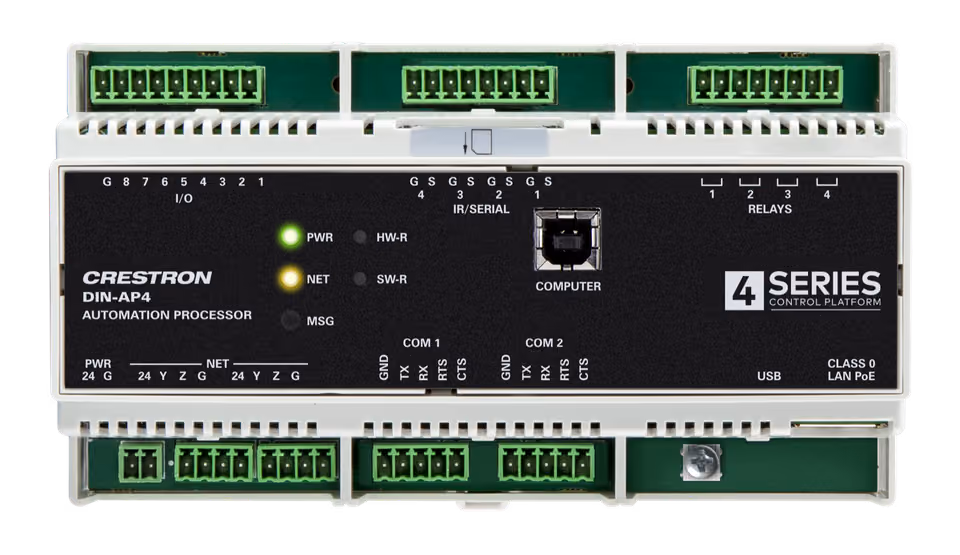

4-Series™ DIN Rail Control System
DIN-AP4
The 4-Series engine, sized for the DIN rail.
Begin a project
Send the quantity you need for the DIN-AP4 and the reply comes back with a quotation.
Or write to services@leadingit.me
Overview
The DIN-AP4 puts a full 4-Series control engine on the DIN rail, so the processor sits in the distribution board next to the breakers instead of in a rack. It anchors an all-DIN automation system alongside Crestron dimming, switching and motor modules. Apple HomeKit and XiO Cloud provisioning are supported, and BACnet for a building management system with a BACnet and IP license.
Finishes
Choose your finish
Specifications
Specifications
Control Engine
- Engine
- Crestron® 4-Series™
- Memory
- 1 GB DDR3 · 8 GB flash
- Programs
- Up to 10 simultaneous
Connections
- I/O ports
- 8 Versiport digital/analog
- Relays
- 4 isolated (1 A)
- IR / COM
- 4 IR · 2 COM ports
Network & Power
- Ethernet
- 100 Mbps, IPv4/IPv6, SSL/TLS
- Power
- 24 VDC or PoE (802.3at)
- Mounting
- 9-module DIN rail (EN 60715)
