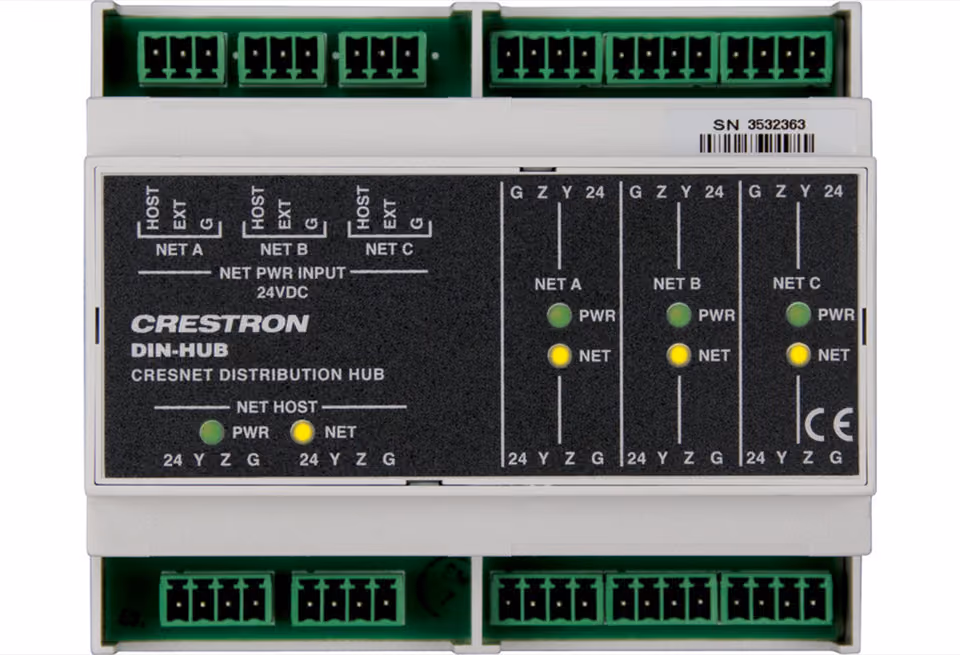

Cresnet® Distribution Hub · DIN Rail
DIN-HUB
The backbone of a large Cresnet network.
Begin a project
Send the quantity you need for the DIN-HUB and the reply comes back with a quotation.
Or write to services@leadingit.me
Overview
A Cresnet bus runs about 20 devices before it needs help. The DIN-HUB adds three more segments and lets each one take power either from the host supply or from its own, which keeps a large villa or a hotel floor on one control network. It clips onto the DIN rail beside Crestron lighting modules and third-party DIN devices.
Finishes
Choose your finish
Specifications
Specifications
Cresnet®
- Segments
- 3-segment hub
- Devices
- ~80 (up to 252 with multiple hubs)
- Purpose
- Large Cresnet® network configuration
Power
- Distribution
- 24 VDC · 75 W max per segment
- Consumption
- 0.6 W
- Temperature
- 0–40 °C
Mounting
- DIN rail
- 6 modules (35 mm EN 60715)
- Weight
- 169 g
