DIN-CENCN-2-POE
Cresnet reliability, carried over high-speed Ethernet.
Send the quantity you need for the DIN-CENCN-2-POE and the reply comes back with a quotation.
Or write to services@leadingit.me

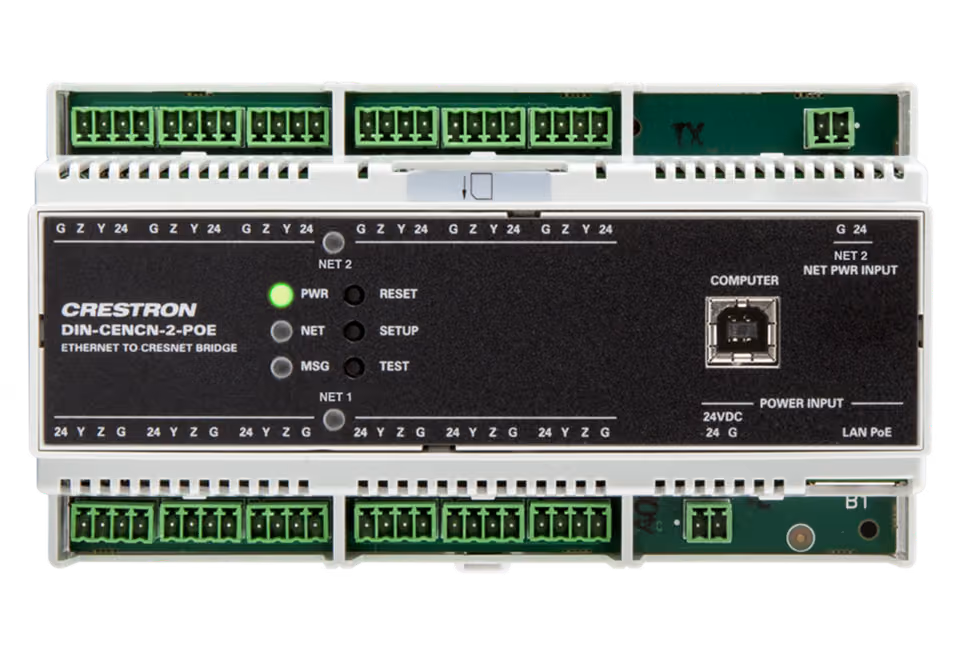

Long Cresnet runs and crowded buses are where control systems get flaky. This module carries Cresnet data over Ethernet instead and splits the load into two isolated subnets, each with its own address space and up to 20 client devices. Six Cresnet connectors make terminating multiple lines straightforward. A front-panel test button and a browser diagnostics page report wiring faults and power shortfalls, and the unit can be powered by PoE, PoE+ or 24 V DC.
Choose your finish
Specifications
- Function
- Ethernet ↔ Cresnet®
- Subnets
- 2 isolated Cresnet® subnets
- Devices
- Up to 20 per subnet
- Input
- PoE / PoE+ or 24 VDC
- Cresnet® power
- 10 W PoE · 20 W PoE+ · 75 W external
- Diagnostics
- Built-in network diagnostics
- DIN rail
- 9 modules (162 mm)
- Ethernet
- 100 Mbps
- Temperature
- 0–40 °C
