Reference Series
Horn-loaded reference for the dedicated cinema.
Send the quantity you need for the Reference Series and the reply comes back with a quotation.
Or write to services@leadingit.me

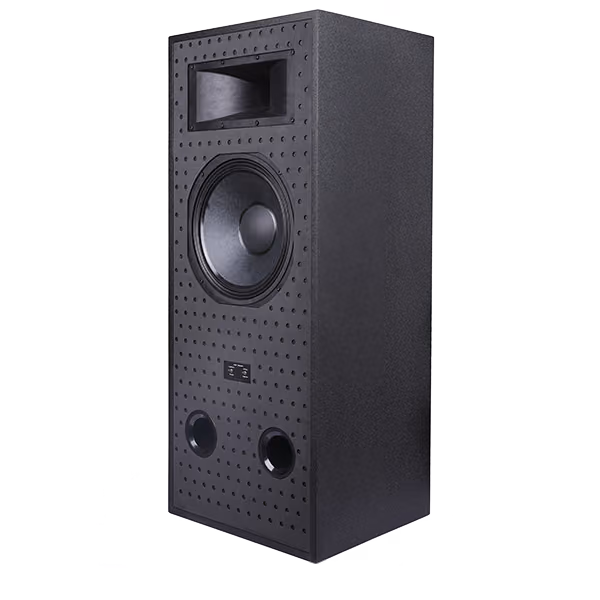

Reference Series is the horn-loaded range UandKSound positions for dedicated cinema rooms, and the only one it describes as developed with film-industry sound engineers. The M1200LCR pairs a single 12" ferrite-magnet woofer with a horn tweeter on the same baffle plane and is rated 45 Hz–20 kHz ±3 dB at 97 dB; the M1800SW adds an 18" passive bass-reflex subwoofer. UandKSound states the high-density MDF enclosure was developed to meet THX standards and that the modular format is intended for placement behind large projection screens.
Choose your finish
Specifications
- Impedance
- 8 Ω
- Frequency
- 45 Hz – 20 kHz (±3 dB)
- Power (RMS)
- 600 W
- Power (peak)
- 1000 W
- Drivers
- 1× 12" ferrite woofer, 1.74" horn tweeter
- Woofer sensitivity
- 97 dB (2.83 V/1 m)
- Impedance
- 8 Ω
- Frequency
- 60 Hz – 22 kHz (±3 dB)
- Power (AES)
- 150 W
- Power (RMS)
- 260 W
- Power (peak)
- 700 W
- Drivers
- 2× 8" composite pulp, 1.74" tweeter
- Sensitivity
- 95 dB (2.83 V/1 m)
- Impedance
- 8 Ω
- Frequency
- 25 Hz – 500 Hz (±3 dB)
- Power (AES)
- 500 W
- Power (RMS)
- 800 W
- Power (peak)
- 1600 W
- Driver
- 1× 18" composite pulp
- Sensitivity
- 96 dB (2.83 V/1 m)
- Enclosure
- Passive bass reflex / MDF

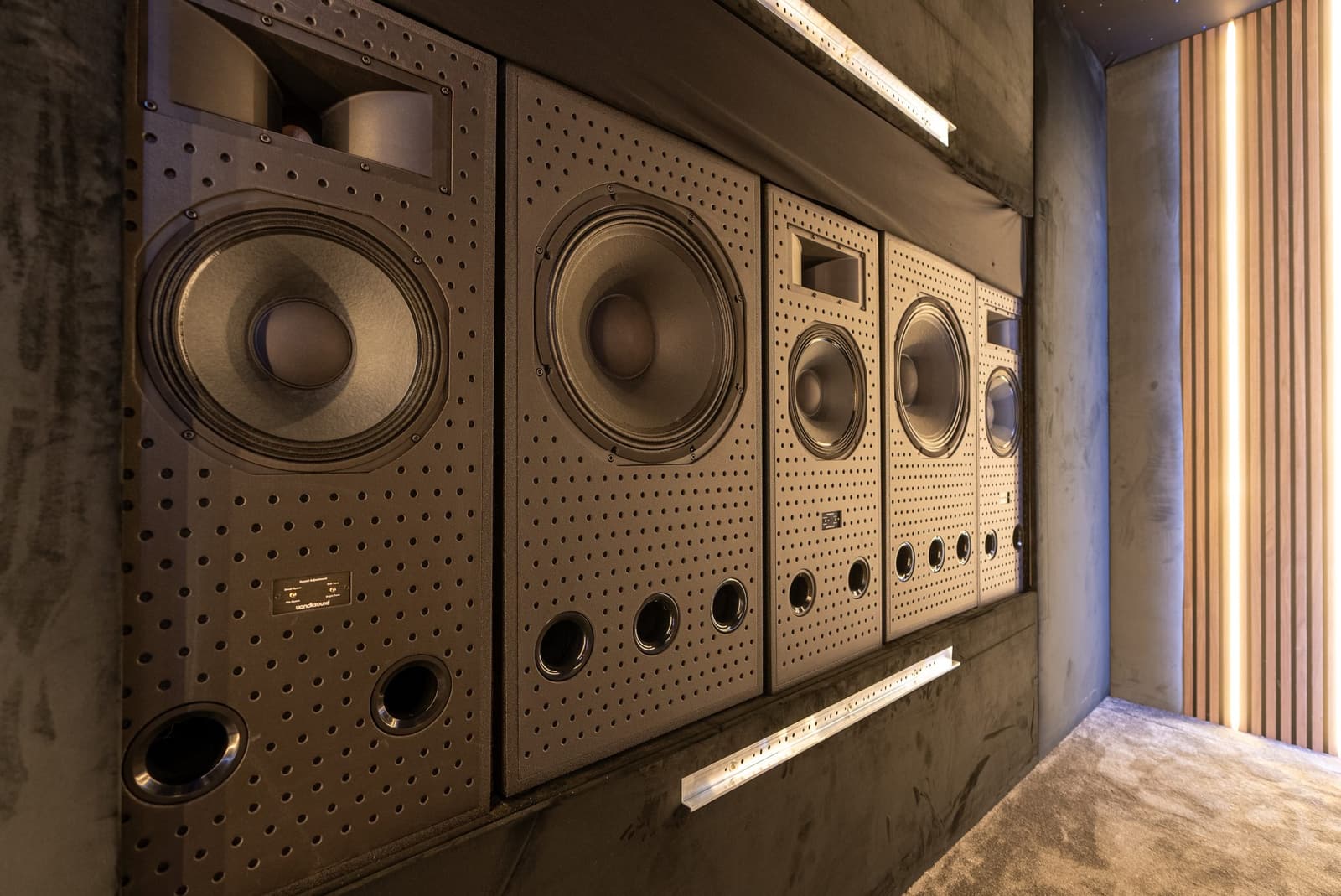

In residence
Specifying the Reference Series into a project? Describe the room and an engineer will answer.
Or write to services@leadingit.me
