E Series
In-wall and in-ceiling, 98 mm behind the plaster.
Send the quantity you need for the E Series and the reply comes back with a quotation.
Or write to services@leadingit.me

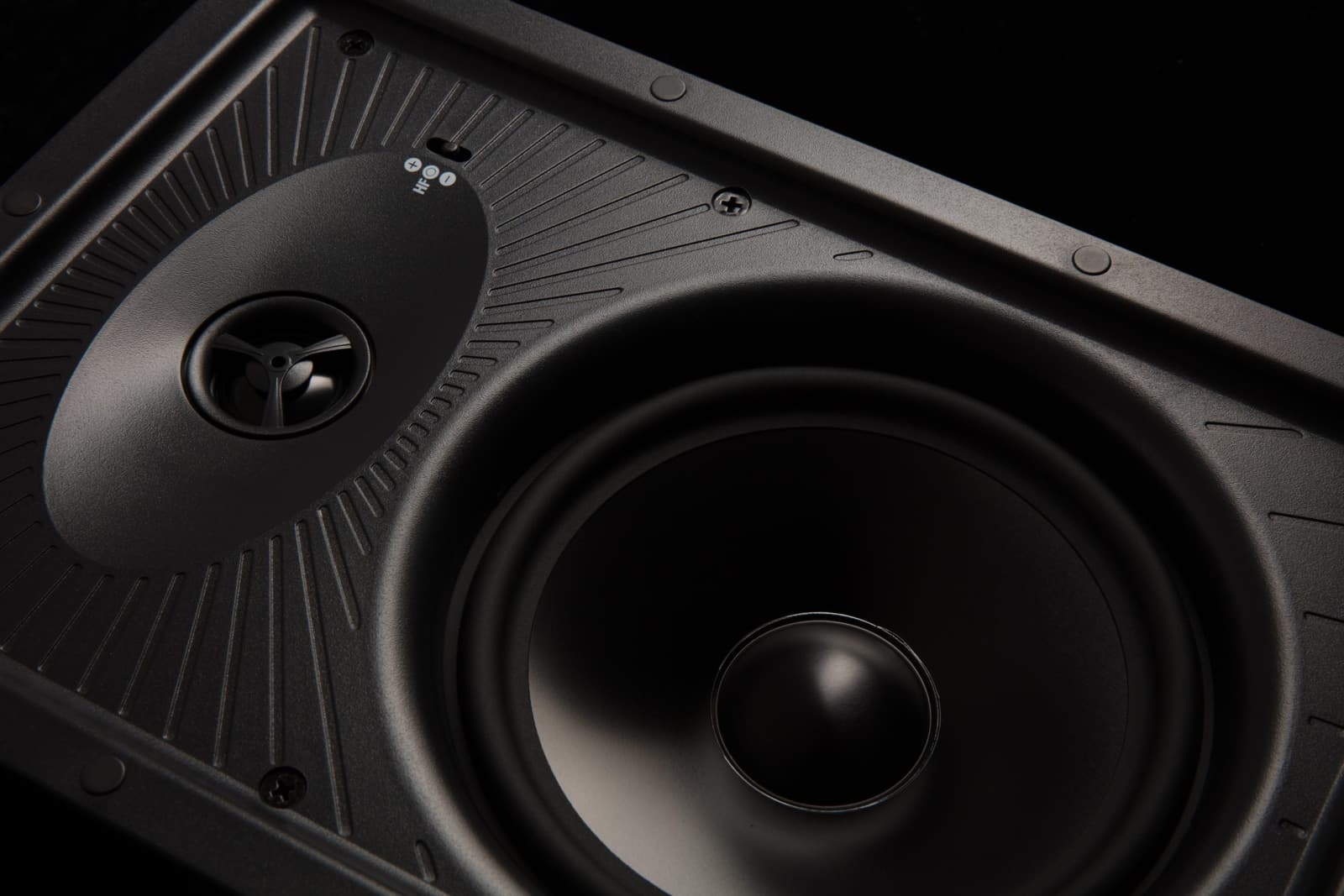

E Series is the architectural range: in-wall (E610IW, E620IW), in-ceiling (E610C, E650FX) and a 12" subwoofer (E1200I), all voice- and timbre-matched to the rest of the UandKSound line. Mounting depth on the E620IW is 98 mm behind a 456 × 186 mm cut-out, and the paintable micro-perforated grille attaches magnetically, so the finished result is a painted wall with a 220 mm-wide outline. Aluminium 6.5" cones and a 1" aluminium tweeter with ±3 dB adjustment handle the tuning.
Choose your finish
Specifications
- Impedance
- 4 Ω
- Frequency
- 45 Hz – 22 kHz (±3 dB)
- Output power
- 80 – 160 W
- Drivers
- 1× 6.5" aluminium, 1" aluminium tweeter
- Sensitivity
- 89 dB (2.83 V/1 m)
- Tweeter settings
- ±3 dB
- Cut-out
- H286 × W186 mm
- Mounting depth
- 98 mm
- Impedance
- 4 Ω
- Frequency
- 45 Hz – 22 kHz (±3 dB)
- Output power
- 160 – 320 W
- Drivers
- 2× 6.5" aluminium, 1" aluminium tweeter
- Sensitivity
- 89 dB (2.83 V/1 m)
- Tweeter settings
- ±3 dB
- Cut-out
- H456 × W186 mm
- Size with grille
- H492 × W220 mm
- Mounting depth
- 98 mm
- Impedance
- 4 Ω
- Frequency
- 45 Hz – 22 kHz (±3 dB)
- Output power
- 80 – 160 W
- Drivers
- 1× 6.5" aluminium, 1" aluminium tweeter
- Sensitivity
- 89 dB (2.83 V/1 m)
- Mounting depth
- 92 mm
- Impedance
- 4 Ω
- Frequency
- 50 Hz – 22 kHz (±3 dB)
- Output power
- 80 – 120 W
- Drivers
- 1× 6.5" aluminium, 1" aluminium tweeter
- Sensitivity
- 89 dB (2.83 V/1 m)
- Tweeter settings
- ±3 dB
- Mounting depth
- 121.5 mm
- Frequency
- 30 Hz – 250 Hz (±3 dB)
- Driver
- 1× 12" coated paper
- Output power
- 300 W
- Amplifier
- Class AB
- Enclosure
- Bass reflex / MDF
- Input voltage
- 110/220 V
- Weight
- 15.3 kg

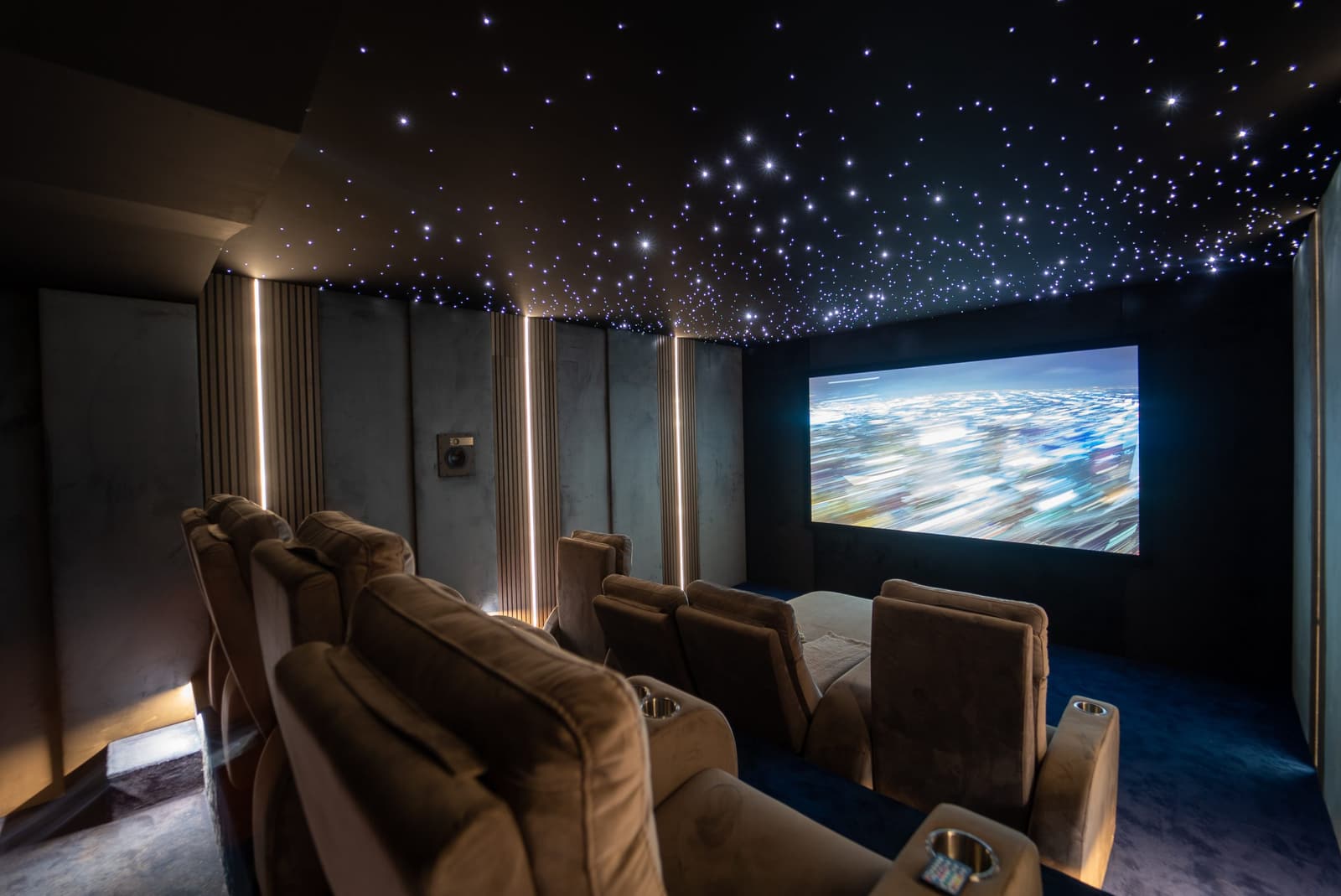

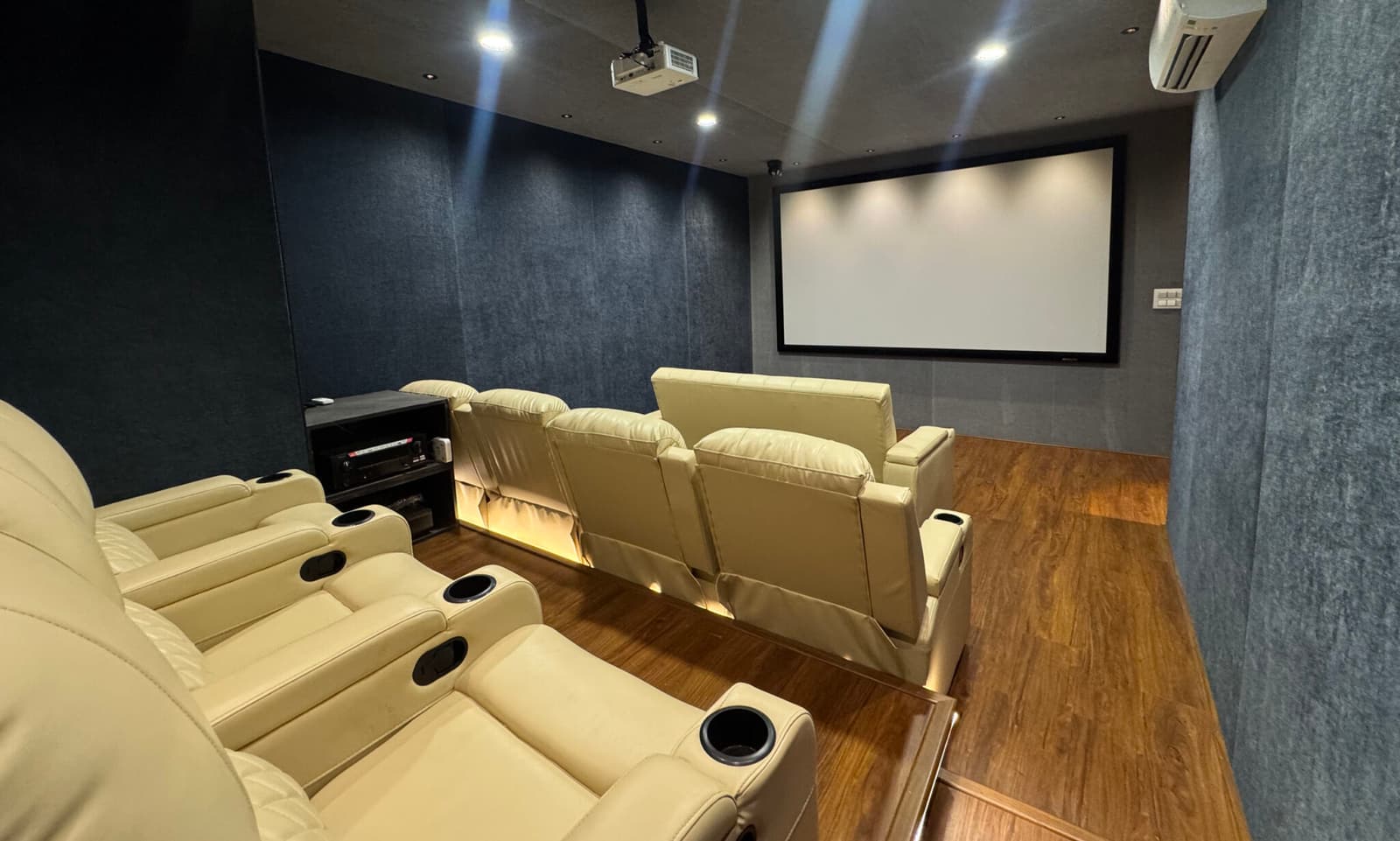

In residence
Specifying the E Series into a project? Describe the room and an engineer will answer.
