Cinema Series · M6

M6 Series

Slim on-wall and in-wall, Air Motion clarity.

UandKSound M6 Series in Satin Black, Cinema Series, M6

Begin a project

Send the quantity you need for the M6 Series and the reply comes back with a quotation.

Message Leading IT on WhatsApp Send an enquiry

Or write to services@leadingit.me

Overview

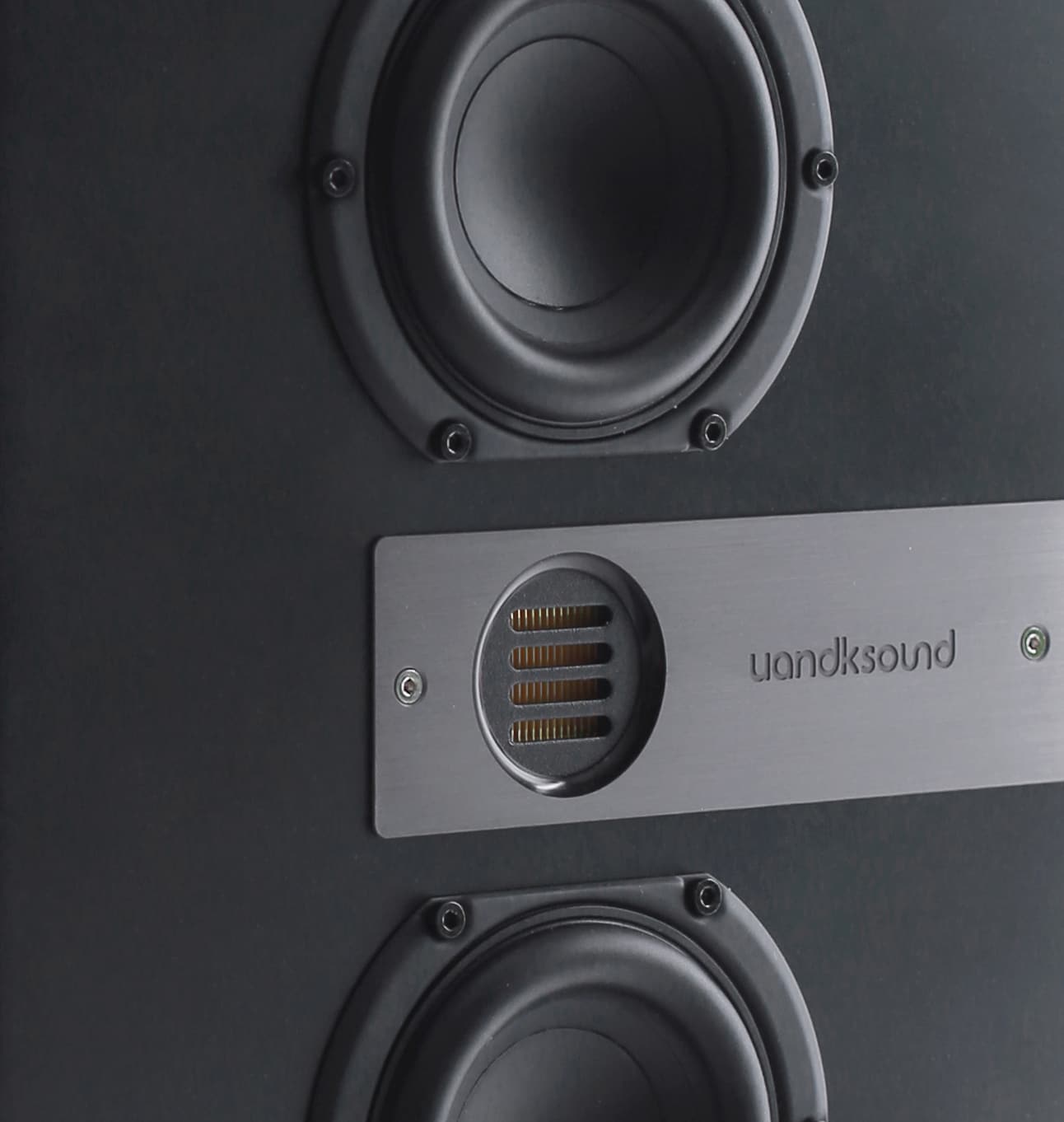

M6 Series is the slim tier: the same Air Motion tweeter as M8 in a shallower cabinet, available on-wall (M610N, M620N) and in-wall (M610IW, M600IW). The M620N is 132 mm deep, runs 2 × 6.5" and 2 × 4" drivers at 89 dB and 45 Hz–22 kHz ±3 dB, and weighs 13 kg — the depth is why it gets specified into stud walls and joinery. The M1200N subwoofer completes it with a 12" Class D driver rated 1200 W peak.

Finishes

Choose your finish

UandKSound M6 Series in Satin Black, Cinema Series, M6

Specifications

Specifications

M610N · On-wall

Impedance: 4 Ω
Frequency: 55 Hz – 22 kHz (±3 dB)
Power (AES): 80 W
Power (RMS): 100 W
Power (peak): 160 W
Drivers: 1× 6.5" + 1× 4" composite pulp, 1" Air Motion tweeter
Sensitivity: 89 dB (2.83 V/1 m)

M620N · On-wall

Impedance: 4 Ω
Frequency: 45 Hz – 22 kHz (±3 dB)
Power (AES): 80 W
Power (RMS): 160 W
Power (peak): 320 W
Drivers: 2× 6.5" + 2× 4" composite pulp, 1" Air Motion tweeter
Sensitivity: 89 dB (2.83 V/1 m)
Size: W260 × D132 × H708 mm

M610IW · In-wall

Impedance: 4 Ω
Frequency: 55 Hz – 22 kHz (±3 dB)
Power (AES): 80 W
Power (RMS): 100 W
Power (peak): 160 W
Drivers: 1× 6.5" + 1× 4" composite pulp, 1" Air Motion tweeter
Sensitivity: 89 dB (2.83 V/1 m)
Size: W260 × D105 × H427 mm

M600IW · In-wall

Impedance: 4 Ω
Frequency: 70 Hz – 22 kHz (±3 dB)
Power (AES): 80 W
Power (RMS): 100 W
Power (peak): 160 W
Driver: 1× 6.5" composite pulp, 1" Air Motion tweeter
Sensitivity: 89 dB (2.83 V/1 m)
Size: W260 × D90 × H311 mm

M1200N · Subwoofer

Frequency: 25 Hz – 300 Hz (±3 dB)
Driver: 1× 12" composite pulp
Power (AES): 200 W
Power (RMS): 800 W
Power (peak): 1200 W
Amplifier: Class D
Sensitivity: 90 dB (2.83 V/1 m)
Enclosure: Bass reflex / MDF
Input voltage: 120/230 V
Weight: 30.3 kg

In Use

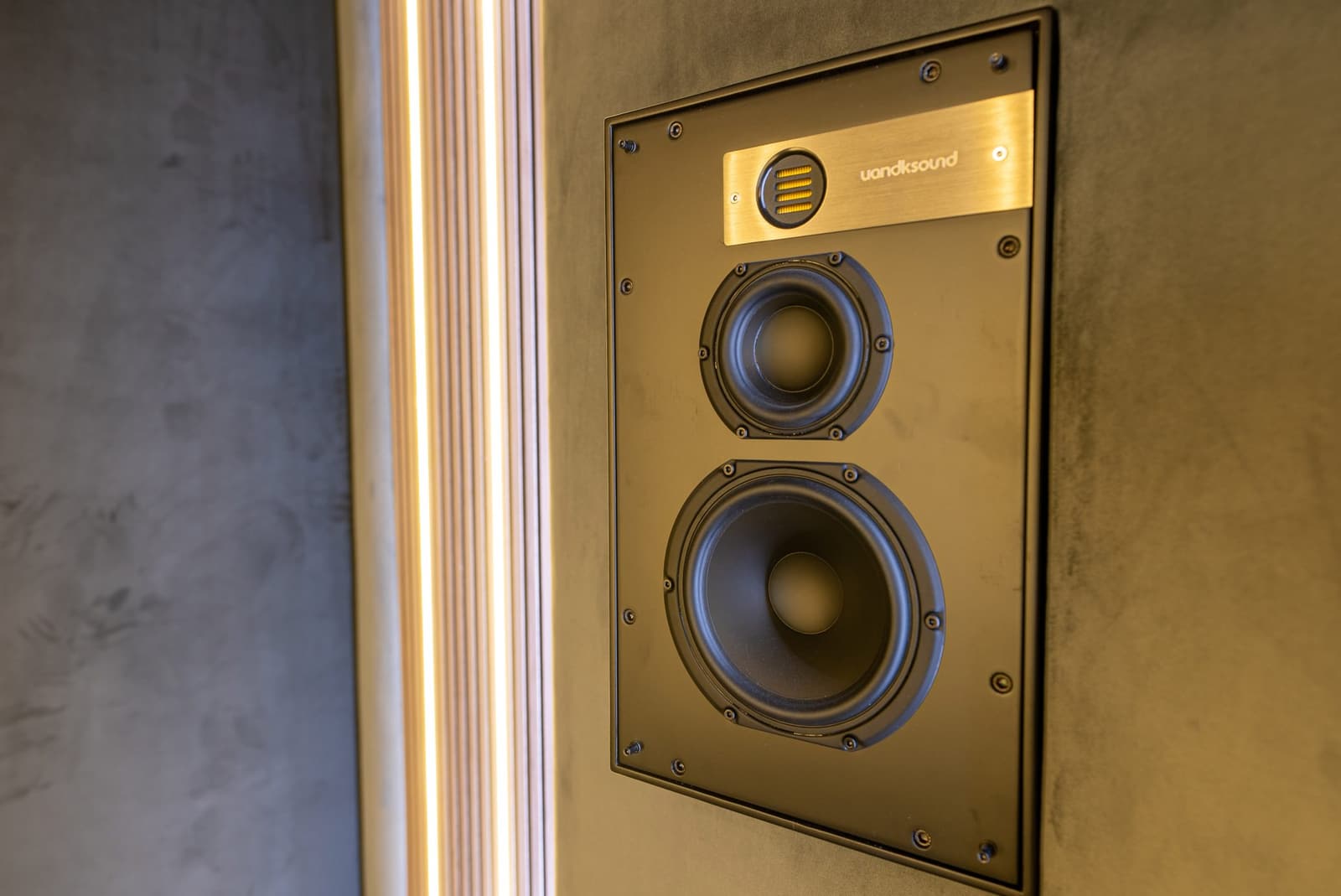

In residence

Begin a project

Specifying the M6 Series into a project? Describe the room and an engineer will answer.
