Crestron Avia™ 12×8 DSP with Dante®
DSP-1281
Avia processing, networked over Dante.
Begin a project
Send the quantity you need for the DSP-1281 and the reply comes back with a quotation.
Or write to services@leadingit.me
Overview

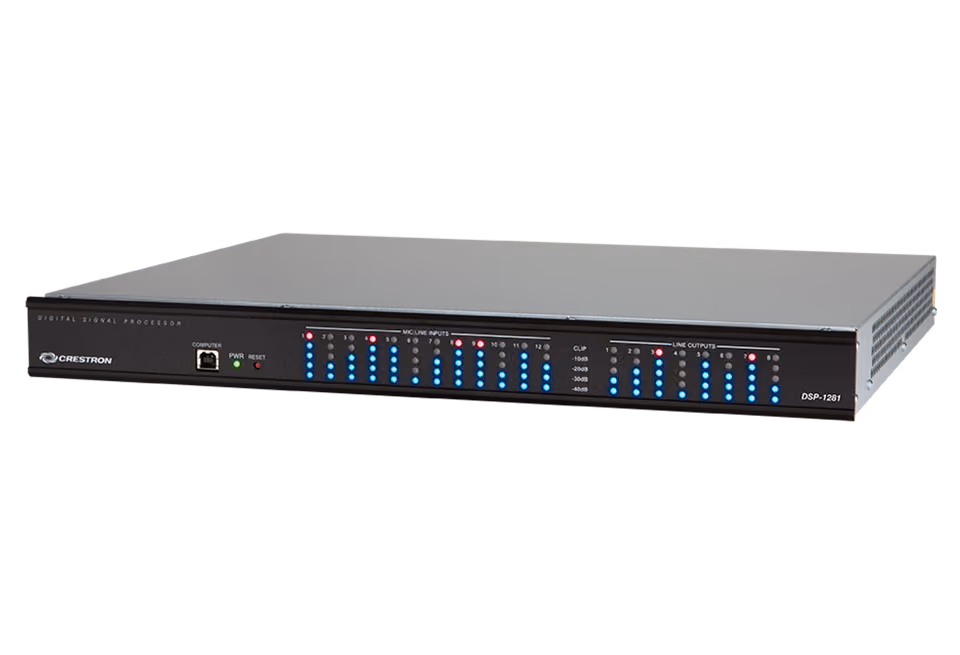

The DSP-1281 is the DSP-1280 with Dante on board: the same twelve mic/line inputs and eight balanced outputs, plus 32 channels in and 32 out over the audio network at up to 24-bit 48 kHz. That is how you add inputs without adding a second rack — link units over Dante and the channel count grows. An AES67 compatibility mode covers interoperating with non-Dante equipment; Crestron notes it may need a Dante firmware upgrade.
Finishes
Choose your finish
Specifications
Specifications
Audio
- Inputs
- 12 mic/line
- Outputs
- 8 balanced
- Network
- 32×32 Dante®
Performance
- Response
- 20 Hz–20 kHz ±0.5 dB
- THD
- 0.001%
- Dynamic range
- 110 dB
Platform
- Dante®
- Primary/secondary Gigabit
- Software
- Avia Audio Tool
- Mounting
- 1 RU 19" rack
